Year 10 Manufacturing (Resistant Materials)

Lesson 11 Week 11 Jigs (Clock Project)

Programmes of Study Teachers Rational Lesson1 (Situation and Brief) Practical Skills Design Skills Theory and Knowledge
Lesson 2
Orthographic Drawings
Lesson3
Brainstorming, Cognitive Charts
and Attribute Analysis
Lesson 4
Plastics. Properties, Uses and Common Forms.
Lesson5
Hardwoods and Softwoods Properties, Uses and Common Forms
Lesson6
Ferrous and Non-Ferrous Metals, Properties and Common forms
Lesson7
Drawing Styles and Modelling
Lesson8
Tools.

Lesson 9
Flowcharts
Lesson10
vacuumforming
Lesson11
Quality
Lesson 12
Finishes

Industrial Processes - Jigs





Cutting Jigs

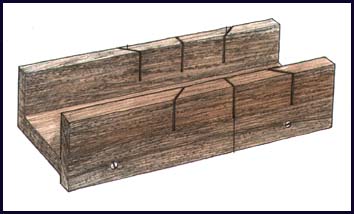

The image below is of a Mitre Box. This jig allows the user to cut angles of 90 and 45 degrees in wood. This common jig may be bought from most tool shops. The 45 degree cuts are called mitre cuts. The box may be made from beech or cast iron. The box may be hooked onto the edge of the bench or clamped to the bench.




A Mitre Box




Cutting Jigs

This jig is called a bench hook. The two blocks of wood are joined together at right angles along long edges. One edge hooks on to the edge of the bench. The work to be cut is placed on top of the bench hook. This jig supports the wood whilst it is being cut.



Bench Hook
